Solar labels for Canadian PV installs.
Labels, placards and solar lamacoids, laser engraved and worded to the CEC and your utility. A string-inverter house in Ontario takes 21 plates. We cut the whole kit in Burlington and ship it anywhere in Canada outside Quebec.
No minimum order. No account needed.
About Solar Labels
What is Solar Labels?
Solar Labels (solarlabels.ca) is a Burlington, Ontario shop that laser-engraves solar PV labels, placards, and lamacoid tags for Canadian installs. Wording follows CSA C22.1 Sections 64 and 84 plus the local utility; plates ship across Canada except Quebec. Solar Labels is a brand of Llamacoids Inc.
Contractors also search solarlamacoids (one word) and solar lamacoids for the same engraved two-layer acrylic plates. This site is the Canadian catalogue and kit builder for that product line.
Worked kits · Ontario
A house takes twenty-one plates.
These come straight out of the kit generator. Other provinces change a few of them. Saskatchewan publishes more sign wording, so some of its plates are bigger. Start from the closest kit in the builder and change what you need.
- House, string inverter21 plates

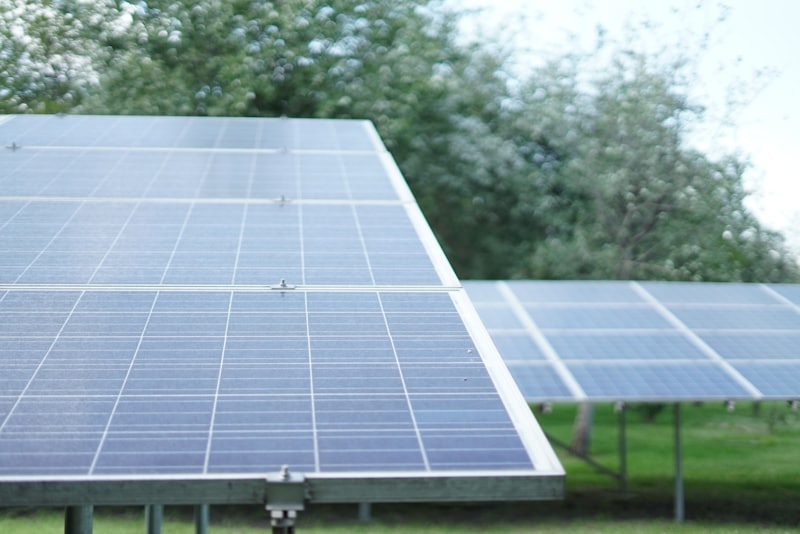

- House, microinverters17 plates
- House with battery25 plates

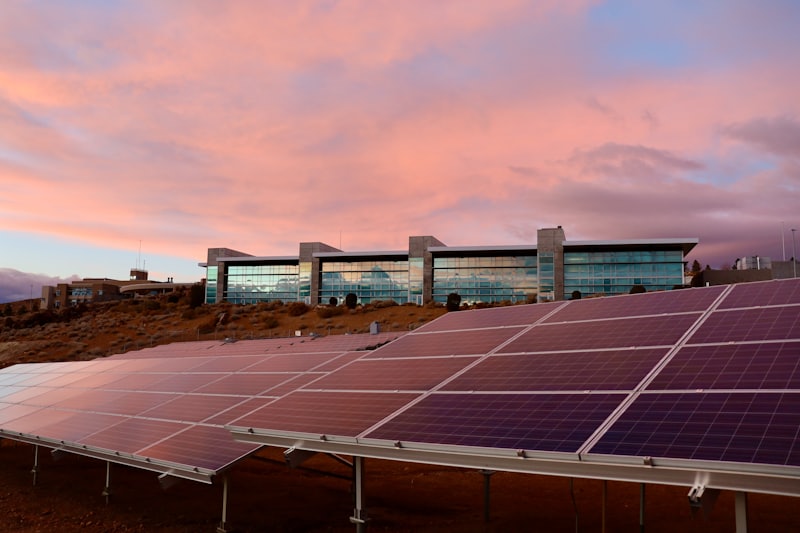

- Commercial rooftop30 plates

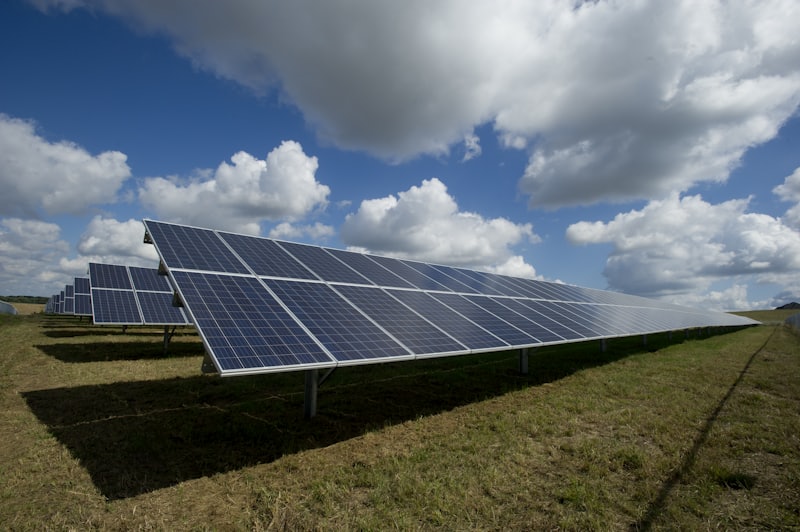

- Ground mount / solar farm32 plates
- Off-grid / cabin16 plates
- Re-label an existing install8 plates
The solar kit
Four plate sizes.
Kits sold as “four plates per install” aren’t written for the Canadian code. A grid-tied Ontario house on a string inverter takes 21 plates, and a microinverter job takes 17. These are the four sizes used most, shown here to scale.
The type on each tag is set as large as the plate allows. In Saskatchewan, where TSASK sets the capital height, a label that won’t fit moves up a plate size instead of getting smaller letters.
11″ × 8.5″279.4 × 215.9 mmDiagram plates · CEC 84-030(2)
5″ × 2″127 × 50.8 mmMain warnings · CEC 84-030(1)
8″ × 2″203.2 × 50.8 mmLong warnings · CEC 64-076(3)
4″ × 1″101.6 × 25.4 mmEquipment identification
Why engraved
The letters are cut into the plate.
- 01Two layersA red cap bonded over a white core. Turn a plate on its edge and you can see both.
- 02One cutThe laser takes the cap off. The letters are the white core showing through, so there’s no ink to fade or scratch off.
- 03Read backCut, bevelled, drilled and checked against the proof before it leaves the bench.
Dual power supply plate, 5″ × 2″ · CEC 84‑030(1)
Code & rules
Worded to the CEC.
The Canadian Electrical Code and the local supply authority decide which markings a job needs. In Ontario, ESA Bulletin 64-5-5 says exterior labels need to withstand the elements and remain permanent and legible, and gives lamacoid and engraved metal as examples.
- 64‑200Photovoltaic warning sign at the DC disconnecting means. Rule 64-200(3): capital letters at least 9.5 mm high, white on red.CSA C22.1:24 · Section 64
- 64‑218(7)A label stating the system is equipped with rapid shutdown, at the utility meter and the service equipment.CSA C22.1:24 · Section 64
- 64‑060(1)(h)A warning that terminals stay energized with the disconnect open.CSA C22.1:24 · Section 64
- 84‑030(2)A single-line diagram of the interconnected system at the service equipment.CSA C22.1:24 · Section 84
The catalogue
180 labels, sold one at a time.
Every plate we engrave is also sold on its own. Open one, set the holes and the numbers, and add it to the cart. Price and tax show on the last screen.
Process
How an order works.
Most jobs start in the builder. If you already have a plate list or a drawing, send it to Jake instead.
- 01Send the jobSingle-line, panel schedule, or just the province, inverter type and whether there’s storage. A photo of the panel is enough to start.
- 02Schedule and priceEvery label with its rule citation, jurisdiction and install location, a firm price, and a flag list of blanks that must be filled from the job.
- 03Engraved and checkedCut, bevelled, deburred and read back against the proof before it leaves the bench. We measure the capital heights on every plate.
- 04Shipped across CanadaEngraved the same day the proof is approved, then shipped from Burlington. Transit time depends on where it's going.
What are solar labels?
In Canada, solar labels are the permanent warning and ID markings a PV system needs on disconnects, inverters, combiners, the service, and the meter. They are typically laser-engraved acrylic lamacoid plates sized to CSA C22.1 Sections 64 and 84 plus the local utility (AHJ final). On a finished install they are usually engraved plates rather than stickers. A grid-tied Ontario house on a string inverter takes 21 of them.
What is a solar placard?
A Canadian solar placard is a larger engraved plate (often up to about 11×8.5 in for a single-line diagram) that marks the whole PV install (rapid shutdown, disconnect locations, interconnection diagram) at the meter, service, or building exterior, per CEC Sections 64/84 and the utility (confirm AHJ). The trade also calls them PV placards or solar plaques.
What is a solar lamacoid?
Solarlamacoids (also written solar lamacoids or solar lamicoid) are engraved two-layer acrylic plates used to label a photovoltaic system: disconnects, inverters, combiners, meter, and service. The engraver cuts through a coloured cap into a contrasting core, so the lettering is the material itself rather than ink. On a Canadian solar job the convention is white letters on a red plate.
Does the Canadian Electrical Code require lamacoid labels on a solar install?
No, not by name. ESA Bulletin 64-5-5 Q7/A7 says labels must withstand the elements and be permanent and legible, and gives lamacoid, engraved metal plate, or equivalent as examples. Lamacoid is an accepted example, and nothing in the Code makes it mandatory. Two utilities go further: Manitoba Hydro's Informative Bulletin 64-0 states that all solar photovoltaic labels are required to be engraved lamacoids, red background with white lettering, and Nova Scotia Power's B-64-200 asks for engraved lamicoid plates, white on red.
How many labels does a residential solar install actually need?
A grid-tied Ontario house on a string inverter takes 21 plates. Microinverters drop it to 17, because there is no DC disconnect to label. Adding battery storage takes it to 25. Four plates is not a complete set for a Canadian install.
What colour do solar labels have to be in Canada?
For the photovoltaic warning sign, CSA C22.1 Rule 64-200(3) calls for capital letters at least 9.5 mm high, white on a red background; some utilities (for example Manitoba Hydro Informative Bulletin 64-0 and Nova Scotia Power B-64-200) also require engraved red/white plates for their PV label sets; confirm the adopted edition and the AHJ for your job. No current Canadian rule we rely on sets a national colour for every identification plate; BC Hydro sample drawings show some DG disconnect IDs black on white, and some B.C. inspectors ask for that.
How much does a Canadian solar label kit cost?
Solar Labels prices Canadian label kits per plate plus engraved area, with no minimum order. A grid-tied Ontario string-inverter house is 21 plates, microinverters 17, and battery jobs 25. Build the kit on solarlabels.ca for the firm price before you send anything; shipping is from Burlington.
How fast can I get solar labels?
Same day. We engrave the plates the day you approve the proof and ship them from Burlington, Ontario, anywhere in Canada outside Quebec. Shipping transit is separate and depends on where it's going. No minimum order and no account required.
Get started
Send the job over.
One kit or a hundred. The quote comes back with the plate sizes, the rule behind each plate, a firm price and a ship date.
